| Size Inch |
Powertip Part No. |
Display Format |
Outline Dimensions |
Viewing Area |
Active Area |
Dot Pitch |
Dot Size |
Controller |
Interface |
Viewing Angel |
Viewing Direction |
Brightness |
Touch Screen |
Detail |
| 1.44 |
PH128128T041-LAA07 |
128(RGB) x 128 dots |
31.1(W) * 36.9(L) * 2.85(H) |
26.498 (W) * 27.496 (L) |
25.498(W) * 26.496(L) |
0.199 (W) * 0.207 (L) |
None |
ST7735S |
80-8 bit |
15/45/45/45 |
12H |
310 |
None |
Mechanism
|
| 1.54 |
D-GMA31027A-0-Q |
200 x 200 dots |
29.46(W) * 31.71(L) * 0.76(H) |
28.26 (W) * 28.26 (L) |
27.66(W) * 27.66(L) |
0.1383 (W) * 0.1383 (L) |
None |
ST7305 |
SPI-4 |
60/60/60/60 |
6H |
Reflection |
None |
Mechanism
|
| 1.77 |
PH128160T068-LAA11 |
128(RGB) x 160 dots |
34.0(W) * 47.0(L) * 2.4(H)Max |
29.032 (W) * 36.04 (L) |
28.032(W) * 35.04(L) |
0.219 (W) * 0.219 (L) |
None |
ST7735S |
80-8 bit |
15/45/45/45 |
12H |
260 |
None |
Mechanism
|
| 2 |
PH176220T062-LAB05 |
176(RGB) x 220 dots |
41.42(W) * 51.6(L) * 4.7(H) |
33.02 (W) * 41.2 (L) |
31.68(W) * 39.6(L) |
0.18 (W) * 0.18 (L) |
None |
ST7775R |
SPI-4 |
60/60/60/60 |
12H |
180 |
RTP |
Mechanism
|
| 2 |
PH240320T074-ZGA |
240(RGB) x 320 dots |
38.4(W) * 51.4(L) * 2.75(H) |
32.2 (W) * 42.3 (L) |
30.6(W) * 40.8(L) |
None |
0.1275 (W) *0.1275 (L) |
ST7789VI |
3-line/4-line SPI |
80/80/80/80 |
Full |
800 |
None |
Mechanism
|
| 2 |
PH240320T074-ZAA01 |
240(RGB) x 320 dots |
36.1(W) * 51.0(L) * 2.05(H) |
31.6 (W) * 41.8 (L) |
30.6(W) * 40.8(L) |
0.1275 (W) * 0.1275 (L) |
None |
ST7789VI |
80-16/18 bit |
80/80/80/80 |
Full |
250 |
None |
Mechanism
|
| 2.4 |
PH240320T062-LAA19 |
240(RGB) x 320 dots |
42.32(W) * 60.06(L) * 2.4(H) |
37.72 (W) * 49.96 (L) |
36.72(W) * 48.96(L) |
0.153 (W) * 0.153 (L) |
None |
ST7789VI |
80-8 bit |
60/60/60/60 |
12H |
230 |
None |
Mechanism
|
| 2.4 |
PH240320T062-LAB06 |
240(RGB) x 320 dots |
42.72(W) * 60.26(L) * 3.85(H)Max |
37.72 (W) * 49.96 (L) |
36.72(W) * 48.96(L) |
0.153 (W) * 0.153 (L) |
None |
ST7789VI |
80-16 bit |
45/15/45/45 |
12H |
150 |
RTP |
Mechanism
|
| 2.4 |
PH240320T062-LAA07 |
240(RGB) x 320 dots |
42.72(W) * 61.46(L) * 2.55(H) |
37.72 (W) * 49.96 (L) |
36.72(W) * 48.96(L) |
0.153 (W) * 0.153 (L) |
None |
ST7789VI |
80-8/16 bit |
60/60/60/60 |
12H |
160 |
None |
Mechanism
|
| 2.4 |
PH240320T073-ZAA |
240(RGB) x 320 dots |
42.32(W) * 60.06(L) * 2.1(H) |
37.72 (W) * 49.96 (L) |
36.72(W) * 48.96(L) |
0.153 (W) * 0.153 (L) |
None |
ST7789VI |
80-8 bit |
80/80/80/80 |
Full |
190 |
None |
Mechanism
|
| 2.4 |
PH240320T-062-L-Q |
240(RGB) x 320 dots |
42.32(W) * 60.06(L) * 2.4(H) |
37.72 (W) * 49.96 (L) |
36.72(W) * 48.96(L) |
0.153 (W) * 0.153 (L) |
None |
ILI9341 |
8 Bit Interface for i80system |
60/60/60/60 |
12H |
120 |
None |
Mechanism
|
| 2.4 |
PH240320T-062-L06Q |
240(RGB) x 320 dots |
42.72(W) * 60.26(L) * 3.85(H)Max |
38.38 (W) * 50.26 (L) |
36.72(W) * 48.96(L) |
0.153 (W) * 0.153 (L) |
None |
ILI9341 |
16-bit interface for i80system |
45/15/45/45 |
12H |
155 |
None |
Mechanism
|
| 2.8 |
PH240320T075-ZEA04 |
240 *3(RGB) x 320 dots |
50.0(W) * 69.2(L) * 2.45(H) |
44.2 (W) * 58.6 (L) |
43.2(W) * 57.6(L) |
None |
0.18 (W) * 0.18 (L) |
ST7789T3-G4-1 |
16-bits 8080 |
80/80/80/80 |
Full |
350 |
None |
Mechanism
|
| 2.8 |
PH240320T068-LAA06 |
240(RGB) x 320 dots |
50.0(W) * 69.2(L) * 3.05(H)Max |
44.2 (W) * 58.6 (L) |
43.2(W) * 57.6(L) |
0.18 (W) * 0.18 (L) |
None |
ST7789VI |
80-16 bit |
60/60/60/60 |
12H |
350 |
None |
Mechanism
|
| 2.8 |
PH240320T068-LAC10 |
240(RGB) x 320 dots |
55.8(W) * 75.0(L) * 5.15(H) |
44.2 (W) * 58.6 (L) |
43.2(W) * 57.6(L) |
0.18 (W) * 0.18 (H) |
None |
ST7789VI |
80-8,16 bit |
60/60/60/60 |
12H |
300 |
CTP-GG |
Mechanism
|
| 2.8 |
PH240320T068-LGG |
240(RGB) x 320 dots |
50.0(W) * 69.2(L) * 3.05(H)Max |
44.2 (W) * 58.6 (L) |
43.2(W) * 57.6(L) |
0.18 (W) * 0.18 (L) |
None |
ST7789VI |
80-16 bit |
60/60/60/60 |
12H |
700 |
None |
Mechanism
|
| 2.8 |
PH240320T068-LAB08 |
240(RGB) x 320 dots |
50.0(W) * 69.2 (L) * 4.25(H)Max |
44.2 (W) * 58.6 (L) |
43.2(W) * 57.6(L) |
0.18 (W) * 0.18 (L) |
None |
ST7789VI |
80-16 bit |
60/60/60/60 |
12H |
250 |
RTP |
Mechanism
|
| 2.8 |
PH240320T075-ZEA |
240(RGB) x 320 dots |
50.0(W) * 69.2(L) * 2.45(H) |
44.2 (W) *58.6 (L) |
43.2(W) *57.6(L) |
0.18 (W) * 0.18 (L) |
None |
ST7789VI |
80-16 bit |
80/80/80/80 |
Full |
350 |
None |
Mechanism
|
| 2.8 |
PH240320T075-ZHA |
240(RGB) x 320 dots |
50.0(W) * 70.0(L) * 2.8(H) |
44.2 (W) * 58.6 (L) |
43.2(W) * 57.6(L) |
0.18 (W) * 0.18 (L) |
None |
ST7789VI |
8/9/16/18-16 bit |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
| 2.8 |
PH240320T068-LAA21 |
240(RGB) x 320 dots |
50.0(W) * 69.2(L) * 3.05(H)Max |
44.2 Min(W) * 58.6 Min(L) |
43.2(W) * 57.6(L) |
0.18 (W) * 0.18 (L) |
None |
ST7789T3-G4-1 |
80-16bit parallel I/F Ⅱ |
60/60/60/60 |
12H |
340 |
None |
Mechanism
|
| 2.8 |
PH240320T068-LAA08 |
240(RGB) x 320 dots |
50.0(W) * 69.2(L) * 3.05(H)Max |
44.2 (W) * 59.95 (L) |
43.2(W) * 57.6(L) |
0.18 (W) * 0.18 (L) |
None |
ILI9341 |
MCU parallel / RGB / SPI |
60/60/60/60 |
12H |
330 |
None |
Mechanism
|
| 3.5 |
PH320240T028-ZEA01 |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 3.2(H) |
70.9 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
ST7272A |
24 bit RGB |
80/80/80/80 |
Full |
300 |
None |
Mechanism
|
| 3.5 |
PH320480T009-LAA01 |
320(RGB) x 480 dots |
55.26(W) * 84.69(L) * 2.7(H) |
49.96 (W) * 74.44 (L) |
48.96(W) * 73.44(L) |
0.153 (W) * 0.153 (L) |
None |
ST7796S |
80-8,9,16,18 bit/SPI-3/SPI-4/16,18 bit RGB |
60/60/60/60 |
12H |
430 |
None |
Mechanism
|
| 3.5 |
PH320240T023-IBA09 |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 3.2(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
500 |
None |
Mechanism
|
| 3.5 |
PH320240T023-IHA |
320(RGB) x 240 dots |
76.9(W) * 63.9 (L) * 3.2(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
1000 |
None |
Mechanism
|
| 3.5 |
PH320240T-023-I02Q |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 3.2(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
500 |
None |
Mechanism
|
| 3.5 |
PH320240T023-IBG |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 3.2 (H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
400 |
None |
Mechanism
|
| 3.5 |
PH320480T009-LAC11 |
320(RGB) x 480 dots |
58.4(W) x 93.4(L) x 3.95(H) |
49.96 (W) x 74.44 (L) |
48.96(W) x 73.44(L) |
0.153 (W) * 0.153 (L) |
None |
ST7796S |
80-8,9,16,18 bit/SPI-3/SPI-4/16,18 bit RGB |
60/60/60/60 |
12H |
360 |
CTP-GFF |
Mechanism
|
| 3.5 |
PH320240T023-IBC08 |
320(RGB) x 240 dots |
84.02(W) * 75.36(L) * 4.68(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
400 |
CTP-GFF |
Mechanism
|
| 3.5 |

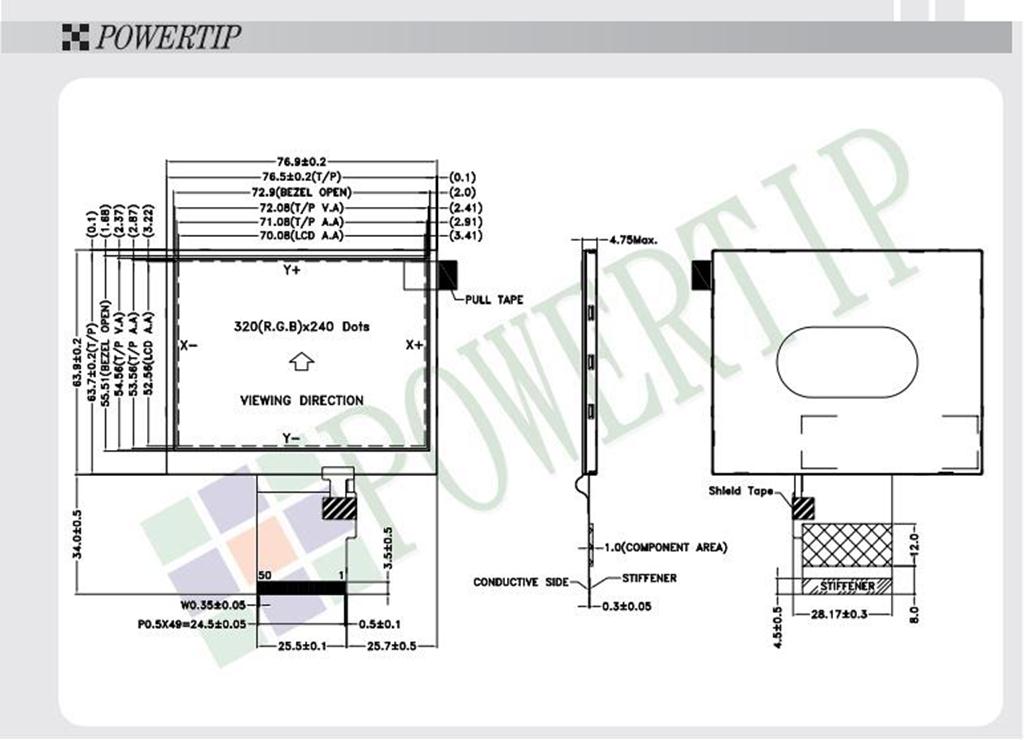

PH320240T-023-I03Q |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 4.75(H)(Max) |
72.08 (W) * 54.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
400 |
RTP |
Mechanism
|
| 3.5 |
PH320240T023-IHB |
320(RGB) x 240 dots |
76.9(W) * 63.9 (L) * 4.3(H) |
72.08 (W) * 54.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
780 |
RTP |
Mechanism
|
| 3.5 |
PH320240T028-ZFA06 |
320 *3(RGB) x 240 dots |
76.9(W) * 63.9(L) * 3.2(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
None |
0.219 (W) * 0.219 (L) |
ST7272A |
Parallel RGB (Data), SPI (Configuration) |
80/80/80/80 |
Full |
560 |
None |
Mechanism
|
| 3.5 |
PH320240T023-IHC06 |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 5.05 (H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
* |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
850 |
Hycon Borderless CTP |
Mechanism
|
| 3.5 |
PH320240T023-IHC04 |
320(RGB) x 240 dots |
84.02(W) * 75.36(L) *5.05(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
* |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
850 |
Hycon CTP-GG |
Mechanism
|
| 3.5 |
PH320240T028-ZEA |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 3.2(H) |
70.9 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
ST7272A |
24 bit RGB |
80/80/80/80 |
Full |
300 |
None |
Mechanism
|
| 3.5 |
PH320240T023-IHA03 |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 3.2(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
HX8238 |
24 bit RGB |
60/60/60/60 |
6H |
880 |
None |
Mechanism
|
| 3.5 |
PH320240T028-ZHA |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 3.2(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
ST7272A |
24 bit RGB |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
| 3.5 |
PH320240T028-ZEC03 |
320(RGB) x 240 dots |
84.02(W) * 75.36(L) * 4.68(H) |
71.68 (W) * 54.16 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
ST7272A |
24 bit RGB |
80/80/80/80 |
Full |
230 |
CTP |
Mechanism
|
| 3.5 |
PH320240T028-ZHC |
320(RGB) x 240 dots |
84.02(W) * 75.36(L) * 5.05(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
ST7272A |
24 bit RGB |
80/80/80/80 |
Full |
1000 |
CTP |
Mechanism
|
| 3.5 |
PH320240T028-ZHC01 |
320(RGB) x 240 dots |
76.9(W) * 63.9(L) * 5.05(H) |
71.08 (W) * 53.56 (L) |
70.08(W) * 52.56(L) |
0.219 (W) * 0.219 (L) |
None |
ST7272A |
24 bit RGB |
80/80/80/80 |
Full |
800 |
CTP |
Mechanism
|
| 4 |
PH480480T001-ZHA |
480 *3(RGB) x 480 dots |
77.0(W) * 80.0(L) * 2.3(H) |
72.856 (W) * 71.176 (L) |
71.856(W) * 70.176(L) |
None |
0.1497 (W) * 0.1462 (L) |
ST7701S |
16/18/24 Bit RGB + 3?Line SPI (Setup) |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
| 4.3 |
PH480272T005-IAA08 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 3.5(H) |
96.04 (W) * 54.856 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
400 |
None |
Mechanism
|
| 4.3 |
PH480272T009-IBC06 |
480(RGB) x 272 dots |
115.1(W) * 78.94(L) * 5.5(H) |
96.1 (W) * 54.9 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ILI6480B |
24 bit RGB |
60/60/60/60 |
6H |
460 |
CTP-GG |
Mechanism
|
| 4.3 |
PH480272T005-IBB04 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 4.7(H) |
99.5 (W) * 58.0 (L) |
97.0(W) * 55.8(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
450 |
RTP |
Mechanism
|
| 4.3 |
PH480272T005-IBA03 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 3.57(H) |
96.64 (W) * 55.456 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
550 |
None |
Mechanism
|
| 4.3 |
PH480272T009-IHA |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 2.6(H) |
96.7 (W) * 55.3 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ILI6480B |
24 bit RGB |
60/60/60/60 |
6H |
1000 |
None |
Mechanism
|
| 4.3 |
PH480272T009-IHB |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 3.85(H) |
99.5 (W) * 58.0 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ILI6480B |
24 bit RGB |
60/60/60/60 |
6H |
780 |
RTP |
Mechanism
|
| 4.3 |
PH480272T005-IDA |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 3.57(H) |
96.64 (W) * 55.456 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
1000 |
None |
Mechanism
|
| 4.3 |
PH480272T005-IAA07 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 2.6(H) |
96.04 (W) * 54.856 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
450 |
None |
Mechanism
|
| 4.3 |
PH480272T016-ZFA |
480 *3(RGB) x 272 dots |
105.5(W) * 67.2(L) * 2.6(H) |
96.3 (W) * 54.9 (L) |
95.040(W) * 53.856(L) |
None |
0.198 (W) * 0.198 (L) |
SC7283-G4 |
Parallel RGB (Data), SPI (Configuration) |
80/80/80/80 |
Full |
550 |
None |
Mechanism
|
| 4.3 |
PH480272T005-IAB11 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 5.0(H)Max |
96.64 (W) * 55.456 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
300 |
RTP |
Mechanism
|
| 4.3 |
PH480272T009-IHC07 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 4.5(H) |
97.1 (W) * 55.9 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
* |
ILI6480B |
24 bit RGB |
60/60/60/60 |
6H |
850 |
Hycon Borderless CTP |
Mechanism
|
| 4.3 |
PH480272T005-IAA01 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 3.0(H) |
96.04 (W) * 54.856 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
330 |
None |
Mechanism
|
| 4.3 |
PH480272T005-IAB05 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 4.09(H) |
98.3 (W) * 57.0 (L) |
95.04(W) * 53.86(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
260 |
RTP |
Mechanism
|
| 4.3 |
PH480272T005-IAC12 |
480(RGB) x 272 dots |
115.1(W) x 78.94(L) x 4.95(H) |
97.1 (W) * 55.9 (L) |
95.04(W) x 53.86(L) |
0.198 (W) * 0.198 (H) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
280 |
CTP-GG |
Mechanism
|
| 4.3 |
PH480272T005-IAC02 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 4.9(H) |
97.1 (W) * 55.9 (L) |
95.04(W) * 53.86(L) |
0.198 (W) * 0.198 (L) |
None |
ST7257 |
24 bit RGB |
60/60/60/60 |
6H |
280 |
CTP-GG |
Mechanism
|
| 4.3 |
PH480272T009-IHC05 |
480(RGB) x 272 dots |
113.2(W) * 73.2(L) *4.5(H) |
97.1 (W) * 55.9 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
* |
ILI6480B |
24 bit RGB |
60/60/60/60 |
6H |
850 |
Hycon CTP-GG |
Mechanism
|
| 4.3 |
PH800480T028-ZFA |
800(RGB) x 480 dots |
105.5(W) * 67.2(L) * 2.6(H) |
96.3 (W) * 54.87 (L) |
95.04(W) * 53.856(L) |
0.1188 (W) * 0.1122 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
500 |
None |
Mechanism
|
| 4.3 |
PH480272T015-IAA |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 2.9(H) |
96.04 (W) * 54.856 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7282 |
24 bit RGB |
60/60/60/60 |
6H |
330 |
None |
Mechanism
|
| 4.3 |
PH480272T016-ZBA |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 3.57(H) |
96.04 (W) * 54.856 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
550 |
None |
Mechanism
|
| 4.3 |
PH480272T016-ZHA |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 2.6(H) |
96.3 (W) * 54.9 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
| 4.3 |
PH480272T016-ZAC01 |
480(RGB) x 272 dots |
115.1(W) * 78.94(L) * 5.52(H) |
96.1 (W) * 54.9 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
465 |
CTP |
Mechanism
|
| 4.3 |
PH480272T016-ZHC |
480(RGB) x 272 dots |
113.2(W) * 73.2(L) * 4.55(H) |
96.1 (W) * 54.9 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (H) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
800 |
CTP |
Mechanism
|
| 4.3 |
PH480272T016-ZHC01 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 4.5(H) |
97.1 (W) * 55.9 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
800 |
CTP |
Mechanism
|
| 4.3 |
PH800480T028-ZFC01 |
800(RGB) x 480 dots |
115.1(W) * 78.94(L) * 4.55(H) |
96.1 (W) * 54.9 (L) |
95.04(W) * 53.856(L) |
0.1188 (W) * 0.1122 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
420 |
CTP |
Mechanism
|
| 4.3 |
PH480272T015-IAC04 |
480(RGB) x 272 dots |
115.1(W) * 78.94(L) * 4.85(H) |
96.1 (W) * 54.9 (L) |
95.04(W) * 53.85(L) |
0.198 (W) * 0.198 (L) |
None |
ST7282 |
24 bit RGB |
60/60/60/60 |
6H |
300 |
CTP-GG |
Mechanism
|
| 4.3 |
PH480272T015-IAB |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 4.0(H) |
96.04 (W) * 54.856 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7282 |
24 bit RGB |
60/60/60/60 |
6H |
260 |
RTP |
Mechanism
|
| 4.3 |
PH480272T015-IBB |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 4.0(H) |
96.04 (W) * 54.856 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7789T3-G4-1 |
24 bit RGB |
60/60/60/60 |
6H |
610 |
RTP |
Mechanism
|
| 4.3 |
PH480272T015-IAA15 |
480(RGB) x 272 dots |
105.5(W) * 67.2(L) * 2.9(H) |
96.04 (W) * 54.856 (L) |
95.04(W) * 53.856(L) |
0.198 (W) * 0.198 (L) |
None |
ST7282A-G6-1L |
Digital 24-bits RGB |
60/60/60/60 |
6H |
350 |
None |
Mechanism
|
| 5 |
PH800480T033-IBB03 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 4.2(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
330 |
RTP |
Mechanism
|
| 5 |
PH800480T033-IBC04 |
800(RGB) x 480 dots |
137.0(W) * 96.5(L) * 5.0(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
360 |
CTP-GFF |
Mechanism
|
| 5 |
PH800480T030-ZFA |
800 *3(RGB) x 480 dots |
121.0(W) * 75.9(L) * 3.1(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
None |
0.135 (W) * 0.135 (L) |
ST7262 |
Parallel RGB (Data), SPI (Configuration) |
80/80/80/80 |
Full |
600 |
None |
Mechanism
|
| 5 |
PH800480T033-IBA01 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 3.1(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
430 |
None |
Mechanism
|
| 5 |
PH800480T030-ZHA01 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 3.1(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
| 5 |
PH800480T033-IHC11 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 5.0(H) |
110.0 (W) * 66.5 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
* |
None |
24 bit RGB |
60/60/60/60 |
6H |
850 |
Hycon Borderless CTP |
Mechanism
|
| 5 |
PH720128T004-ZBC11 |
720(RGB) x 1280 dots |
91.46(W) * 143.4(L) * 5.22(H) |
63.1 (W) * 111.4 (L) |
62.1(W) * 110.4(L) |
0.08625 (W) * 0.08625 (L) |
None |
ILI9881C |
MIPI |
80/80/80/80 |
Full |
500 |
CTP-GG |
Mechanism
|
| 5 |
PH800480T033-IHC07 |
800(RGB) x 480 dots |
131.0(W) * 90.5(L) * 5.0(H) |
110.0 (W) * 66.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
* |
None |
24 bit RGB |
60/60/60/60 |
6H |
850 |
Hycon CTP-GG |
Mechanism
|
| 5 |
PH800480T033-ICC05 |
800(RGB) x 480 dots |
137.0(W) * 96.5(L) * 5.0(H)Max |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
500 |
CTP-GFF |
Mechanism
|
| 5 |
PH800480T033-IHC13 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 15.4(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
ILI6122M+ILI5960 |
HDMI |
60/60/60/60 |
6H |
1000 |
CTP-GG |
Mechanism
|
| 5 |
PH800480T030-ZGA |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 3.1(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
600 |
None |
Mechanism
|
| 5 |
PH800480T030-ZGC04 |
800(RGB) x 480 dots |
137.0(W) * 96.5(L) * 5.0(H)Max |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
500 |
CTP |
Mechanism
|
| 5 |
PH800480T030-ZHC |
800(RGB) x 480 dots |
131.0(W) * 90.5(L) * 5.0(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
850 |
CTP |
Mechanism
|
| 5 |
PH800480T030-ZHC01 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 5.0(H) |
110.0 (W) * 66.5 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
850 |
CTP |
Mechanism
|
| 5 |
PH800480T035-HEA |
800(RGB) x 480 dots |
120.7(W) * 75.9(L) * 2.95(H) |
109 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
HX8264+HX8664 |
24 bit RGB |
35/55/65/65 |
6H |
300 |
None |
Mechanism
|
| 5 |
PH800480T030-ZHR03 |
800(RGB) x 480 dots |
145.56(W) * 102.36(L) * 7.05(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
ST7262 |
24 bit RGB |
80/80/80/80 |
Full |
850 |
CTP-GG |
Mechanism
|
| 5 |
PH800480T033-ICA01 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 3.1(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
600 |
None |
Mechanism
|
| 5 |
PH800480T033-IDA01 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 3.1(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
900 |
None |
Mechanism
|
| 5 |
PH800480T033-IHA |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 3.1(H) |
109.0 (W) * 65.8 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
1000 |
None |
Mechanism
|
| 5 |
PH800480T033-ICB01 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 4.2(H) |
110.4 (W) * 67.4 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
500 |
RTP |
Mechanism
|
| 5 |
PH800480T033-IDB01 |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 4.2(H) |
110.4 (W) * 67.4 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
700 |
RTP |
Mechanism
|
| 5 |
PH800480T033-IHB |
800(RGB) x 480 dots |
121.0(W) * 75.9(L) * 4.2(H) |
110.4 (W) * 67.4 (L) |
108.0(W) * 64.8(L) |
0.135 (W) * 0.135 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
780 |
RTP |
Mechanism
|
| 7 |
PH800480T013-IHA |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
1000 |
None |
Mechanism
|
| 7 |
PH800480T013-ICA |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
800 |
None |
Mechanism
|
| 7 |
PH800480T013-IBA01 |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
520 |
None |
Mechanism
|
| 7 |
PH800480T-013-I-Q |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
300 |
None |
Mechanism
|
| 7 |
PH800480T013-IAC27 |
800(RGB) x 480 dots |
192.96(W) * 110.76(L) * 5.6(H)Max |
154.88 (W) * 86.72 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
320 |
CTP-GG |
Mechanism
|
| 7 |
PH800480T029-IAC01 |
800(RGB) x 480 dots |
192.96(W) * 110.76(L) * 5.3(H) |
154.88 (W) * 86.72 (L) |
154.08(W) * 85.92(L) |
None |
0.1926 (W) * 0.179 (L) |
Source Driver with TCON - ILI6137A / Gate Drive - ILI5960 |
24 Bits RGB |
60/60/60/60 |
6H |
300 |
CTP |
Mechanism
|
| 7 |
PH102600T013-ZHC11 |
1024 *3(RGB) x 600 dots |
164.9(W) * 100(L) * 7.59(H) |
154.88 (W) * 86.72 (L) |
154.2144(W) * 85.92(L) |
None |
0.1506 (W) * 0.1432 (L) |
ST5021-G3-1 + ST5651CB-G3-1 |
24 bit RGB |
80/80/80/80 |
Full |
850 |
CTP |
Mechanism
|
| 7 |
PH800480T013-IHB |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 4.95(H) |
156.2 (W) * 89.24 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
800 |
RTP |
Mechanism
|
| 7 |
PH800480T007-IHA |
800(RGB) x 480 dots |
165.0(W) * 104.44(L) * 5.2(H) |
154.0 (W) * 93.04 (L) |
152.4(W) * 91.44(L) |
0.1905 (W) * 0.1905 (L) |
None |
None |
24 bit RGB |
60/60/60/60 |
6H |
1000 |
None |
Mechanism
|
| 7 |
PH800480T007-IHC01 |
800(RGB) x 480 dots |
193.2(W) * 132.24(L) * 7.14(H) |
153.2 (W) * 92.24 (L) |
152.4(W) * 91.44(L) |
0.1905 (W) * 0.1905 (L) |
None |
None |
24 bit RGB |
35/35/45/45 |
6H |
800 |
CTP-GG |
Mechanism
|
| 7 |
PH800480T013-IDA01 |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 5.7(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
1000 |
None |
Mechanism
|
| 7 |
PH800480T-013-I01Q |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 4.9(H) |
156.2 (W) * 89.24 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
250 |
RTP |
Mechanism
|
| 7 |
PH800480T032-ZFA |
800 *3(RGB) x 480 dots |
164.4(W) * 105.9(L) * 5.7(H) |
153.40 (W) * 92.44 (L) |
152.40(W) * 91.44(L) |
None |
0.1905 (W) * 0.1905 (L) |
HX8249-A02+HX8678-C |
Parallel RGB (Data), SPI (Configuration) |
80/80/80/80 |
Full |
500 |
None |
Mechanism
|
| 7 |
PH800480T013-IBC24 |
800(RGB) x 480 dots |
192.96(W) * 110.76(L) * 5.3(H) |
154.88 (W) * 86.72 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
440 |
CTP-GG |
Mechanism
|
| 7 |
PH800480T013-ICC08 |
800(RGB) x 480 dots |
192.96(W) * 110.76(L) * 5.6(H)Max |
154.88 (W) * 86.72 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
650 |
CTP-GG |
Mechanism
|
| 7 |
PH800480T013-IHF56 |
800(RGB) x 480 dots |
110.76(W) * 192.96(L) * 7.79(H) |
154.88 (W) * 86.72 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
6H |
720 |
CTP-GG |
Mechanism
|
| 7 |
PH280142T001-ZBR |
280 *3(RGB) x 1424 dots |
43.3(W) * 201.0(L) * 5.17(H) |
34.4 (W) * 171.68 (L) |
33.6(W) * 170.88(L) |
None |
0.12 (W) * 0.12 (L) |
ST7703I |
4-Lanes MIPI |
85/85/85/85 |
Full |
400 |
CTP |
Mechanism
|
| 7 |
PH800480T037-ZAA |
800 *3(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
154.84 (W) * 86.63 (L) |
153.84(W) * 85.632(L) |
None |
0.1923 (W) * 0.1784 (L) |
ST72568 |
24 bits RGB |
80/80/80/80 |
Full |
500 |
None |
Mechanism
|
| 7 |
PH102600T013-ZBC01 |
1024 *3(RGB) x 600 dots |
180.06(W) * 116.0(L) * 4.7(H) |
155.01 (W) * 86.92 (L) |
154.214(W) * 85.92(L) |
None |
0.1506 (W) * 0.1432 (L) |
EK79007+EK73217 |
4-Lanes MIPI |
80/80/80/80 |
Full |
425 |
CTP |
Mechanism
|
| 7 |
PH800480T013-IHA06 |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 18.56(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
HDMI |
50/70/70/70 |
6H |
1000 |
None |
Mechanism
|
| 7 |
PH800480T013-IHC08 |
800(RGB) x 480 dots |
186.8(W) * 110.56(L) * 20.45(H) |
154.88 (W) * 86.72 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
HDMI |
50/70/70/70 |
6H |
850 |
CTP-GG |
Mechanism
|
| 7 |
PH800480T013-IHC12 |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 5.29(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
* |
None |
24 bit RGB |
50/70/70/70 |
6H |
850 |
Hycon Borderless CTP |
Mechanism
|
| 7 |
PH102600T015-IBA |
1024(RGB) x 600 dots |
165.75(W) * 105.4(L) * 2.65(H) |
155.21 (W) * 86.92 (L) |
154.21(W) * 85.92(L) |
0.1506 (W) * 0.1432 (L) |
None |
None |
LVDS |
60/60/60/60 |
6H |
500 |
None |
Mechanism
|
| 7 |
PH102600T015-IBC02 |
1024(RGB) x 600 dots |
192.96(W) * 121.4(L) * 4.45(H) |
155.01 (W) * 86.72 (L) |
154.21(W) *85.92 (L) |
0.1506 (W) * 0.1432 (H) |
None |
EK79001E+EK73215B |
LVDS 6 or 8 bit |
60/60/60/60 |
6H |
470 |
CTP-GG |
Mechanism
|
| 7 |
PH800480T013-IHC09 |
800(RGB) x 480 dots |
186.8(W) * 110.56(L) * 5.29(H) |
154.88 (W) * 86.72 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
* |
None |
24 bit RGB |
50/70/70/70 |
6H |
850 |
Hycon CTP-GG |
Mechanism
|
| 7 |
PH720128T005ZBC |
720(RGB) x 1280 dots |
120.24(W) * 189.32(L) * 5.36(H) |
87.74 (W) * 155.36 (L) |
86.94 (W) * 154.56 (L) |
0.1239 (W) * 0.119 (L) |
None |
None |
MIPI |
80/80/80/80 |
Full |
500 |
CTP-GG |
Mechanism
|
| 7 |
PH102600T015-IBC04 |
1024(RGB) x 600 dots |
164.9(W) * 100.0(L) * 15.7(H) |
155.05 (W) * 86.72 (L) |
154.21(W) * 85.92(L) |
0.1506 (W) * 0.1432 (L) |
None |
EK79001E+EK73215B |
HDMI |
60/60/60/60 |
6H |
500 |
CTP-GG |
Mechanism
|
| 7 |
PH102600T013-ZBC |
1024(RGB) x 600 dots |
164.9(W) * 100.0(L) * 15.7(H) |
155.01 (W) * 86.72 (L) |
154.21(W) * 85.92(L) |
None |
0.1506 (W) * 0.1432 (L) |
HY4635+SAMD21 |
HDMI |
80/80/80/80 |
Full |
650 |
CTP |
Mechanism
|
| 7 |
PH800480T027-ZHA |
800(RGB) x 480 dots |
167.7(W) * 109.45(L) * 19.8(H) |
153.8 (W) * 92.84 (L) |
152.4(W) * 91.44(L) |
0.1905 (W) * 0.1905 (L) |
None |
None |
24 bit RGB |
80/80/80/80 |
Full |
950 |
None |
Mechanism
|
| 7 |
PH102600T013-ZFA |
1024(RGB) x 600 dots |
165.75(W) * 105.4(L) * 2.75(H) |
155.21 (W) * 86.92 (L) |
154.21(W) * 85.92(L) |
0.1506 (W) * 0.1432 (L) |
None |
None |
LVDS |
80/80/80/80 |
Full |
500 |
None |
Mechanism
|
| 7 |
PH800480T037-ZHA |
800 *3(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
154.84 (W) * 86.63 (L) |
153.84(W) * 85.632(L) |
None |
0.1923 (W) * 0.1784 (L) |
ST72568 |
Parallel RGB (Data), SPI (Configuration) |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
| 7 |
PH102600T013-ZFC04 |
1024(RGB) x 600 dots |
192.96(W) * 121.4(L) * 4.7(H) |
155.01 (W) * 86.92 (L) |
154.214(W) * 85.92(L) |
0.1506 (W) * 0.1432 (L) |
None |
None |
LVDS |
80/80/80/80 |
Full |
435 |
CTP |
Mechanism
|
| 7 |
PH800480T007-IHC |
800(RGB) x 480 dots |
165.0(W) * 104.44(L) * 6.99(H) |
154.0 (W) * 93.04 (L) |
152.4(W) * 91.44(L) |
0.1905 (W) * 0.1905 (L) |
None |
HX8262-A+HX8678-A |
24 bit RGB |
35/35/45/45 |
6H |
500 |
CTP-GG |
Mechanism
|
| 7 |
PH720128T005-ZBA |
720(RGB) x 1280 dots |
98.61(W) * 165.45(L) * 3.27(H) |
87.74 (W) * 155.36 (L) |
86.94(W) * 154.56(L) |
0.12075 (W) * 0.12075 (L) |
None |
ILI9881C |
MIPI |
80/80/80/80 |
Full |
600 |
None |
Mechanism
|
| 7 |
PH102600T015-IBC01 |
1024(RGB) x 600 dots |
192.96(W) * 121.4(L) * 4.6(H) |
155.01 (W) * 86.72 (L) |
154.21(W) * 85.92 (L) |
0.1506 (W) * 0.1432 (H) |
None |
EK79001E+EK73215B |
LVDS 6 or 8 bit |
60/60/60/60 |
6H |
470 |
CTP-GG |
Mechanism
|
| 7 |
PH102600T013-ZBA |
1024 *3(RGB) x 600 dots |
164.9(W) * 100.0(L) * 13.81(H) |
155.01 (W) * 86.72 (L) |
154.21(W) * 85.92(L) |
None |
0.1506 (W) * 0.1432 (L) |
ST5021-G3-1 + ST5651CB-G3-1 |
HDMI |
80/80/80/80 |
Full |
800 |
None |
Mechanism
|
| 7 |
PH800480T032-ZHA |
800(RGB) x 480 dots |
164.4(W) * 105.9(L) * 5.7(H) |
153.40 (W) * 92.44 (L) |
152.40(W) * 91.44(L) |
0.1905 (W) * 0.1905 (L) |
None |
HX8249+HX8678 |
24 bit RGB |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
| 7 |
PH800480T032-ZHC |
800(RGB) x 480 dots |
189.4(W) * 128.44(L) * 7.6(H) |
153.40 (W) * 92.44 (L) |
152.40(W) * 91.44(L) |
0.1905 (W) * 0.1905 (L) |
None |
HX8249+HX8678 |
24 bit RGB |
80/80/80/80 |
Full |
800 |
CTP-GG |
Mechanism
|
| 7 |
PH800480T032-ZHR |
800(RGB) x 480 dots |
189.4(W) * 128.44(L) * 8.6(H) |
153.40 (W) * 92.44 (L) |
152.40(W) * 91.44(L) |
0.1905 (W) * 0.1905 (L) |
None |
HX8249+HX8678 |
Parallel RGB (Data), SPI (Configuration) |
80/80/80/80 |
Full |
800 |
CTP-GG |
Mechanism
|
| 7 |
PH102600T013-ZFC06 |
1024(RGB) x 600 dots |
192.96(W) * 121.4(L) * 4.6(H) |
155.01 (W) * 86.72 (L) |
154.21(W) * 85.92(L) |
0.1506 (W) * 0.1432 (L) |
None |
XT640T+SAMD21 |
LVDS |
80/80/80/80 |
Full |
510 |
CTP-GG |
Mechanism
|
| 7 |
PH102600T013-ZHA |
1024(RGB) x 600 dots |
164.9(W) * 100.0(L) * 5.7(H) |
155.21 (W) * 86.92 (L) |
154.2144(W) * 85.92(L) |
0.1506 (W) * 0.1432 (L) |
None |
ST5021-G3-1 + ST5651CB-G3-1 |
24 bit RGB |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
| 7 |
PH102600T013-ZHC |
1024(RGB) x 600 dots |
186.8(W) * 110.56(L) * 7.64(H) |
155.28 (W) * 87.12 (L) |
154.2144(W) * 85.92(L) |
0.1506 (W) * 0.1432 (L) |
None |
FT5426 |
24 bit RGB |
80/80/80/80 |
Full |
850 |
CTP-GG |
Mechanism
|
| 7 |
PH102600T013-ZBA01 |
1024 *3(RGB) x 600 dots |
165.75(W) * 105.4(L) * 2.75(H) |
155.21 (W) * 86.92 (L) |
154.21(W) * 85.92(L) |
None |
0.1506 (W) * 0.1432 (L) |
EK79007+EK73217 |
4-Lanes MIPI |
80/80/80/80 |
Full |
500 |
None |
Mechanism
|
| 7 |
PH102600T013-ZHC05 |
1024(RGB) x 600 dots |
186.8(W) * 110.56(L) * 7.59(H) |
155.28 (W) * 87.12 (L) |
154.2144(W) * 85.92(L) |
0.1506 (W) * 0.1432 (L) |
None |
HY4635 |
24 bit RGB |
80/80/80/80 |
Full |
1000 |
CTP-GG |
Mechanism
|
| 7 |
PH800480T029-IAA |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
154.08 (W) * 89.3 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
Source Driver with TCON - ILI6122 / Gate Drive - ILI5960 |
24 Bits RGB Interface |
60/60/60/60 |
6H |
350 |
None |
Mechanism
|
| 7 |
PH800480T029-IAB02 |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 5.0(H) |
156.2 (W) * 89.24 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
Source Driver with TCON - ILI6137A / Gate Drive - ILI5960 |
24 Bit RGB |
60/60/60/60 |
6H |
270 |
None |
Mechanism
|
| 7 |
PH800480T029-IHA |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
ILI6137A-00T0041 / ILI5960-9G |
24 Bit RGB |
60/60/60/60 |
6H |
1000 |
None |
Mechanism
|
| 7 |
PH800480T013-IBB01 |
800(RGB) x 480 dots |
164.9(W) * 100.0(L) * 4.95(H) |
156.2 (W) * 89.24 (L) |
154.08(W) * 85.92(L) |
0.1926 (W) * 0.179 (L) |
None |
None |
24 bit RGB |
50/70/70/70 |
6H |
400 |
RTP |
Mechanism
|
| 7 |
PH800480T029-IFA01 |
800 *3(RGB) x 480 dots |
164.9(W) * 100.0(L) * 3.4(H) |
155.08 (W) * 86.92 (L) |
154.08(W) * 85.92(L) |
None |
0.1926 (W) * 0.179 (L) |
ILI6137A+ILI5960 |
Parallel RGB (Data), SPI (Configuration) |
60/60/60/60 |
6H |
500 |
None |
Mechanism
|
| 8 |
PH102600T019-IBC |
1024(RGB) x 600 dots |
210.0(W) * 134.0 (L) * 8.35(H) |
177.64 (W) * 100.36 (L) |
176.64(W) * 99.36(L) |
0.1725 (W) * 0.1656 (L) |
None |
HX8282+HX8969 |
LVDS 6 or 8 bit |
60/60/60/60 |
6H |
360 |
CTP-GG |
Mechanism
|
|
PH128800T004-ZFA |
1280(RGB) x 800 dots |
229.8(W) * 149.0(L) * 5.9(H) |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
LVDS |
85/85/85/85 |
Full |
500 |
None |
Mechanism
|
|
PH128800T002-ZBA |
1280(RGB) x 800 dots |
229.46(W) * 149.1(L) * 4.8(H) |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
LVDS |
85/85/85/85 |
Full |
500 |
None |
Mechanism
|
|
PH128800T007-ZJA |
1280 *3(RGB) x 800 dots |
229.8(W) * 149.0(L) * 9.0(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
None |
0.1695 (W) * 0.1695 (L) |
None |
LVDS |
80/80/80/80 |
Full |
1500 |
None |
Mechanism
|
|
PH128800T007-ZHA |
1280 *3(RGB) x 800 dots |
229.8(W) * 149.0(L) * 9.0(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
None |
0.1695 (W) * 0.1695 (L) |
None |
LVDS |
80/80/80/80 |
Full |
1000 |
None |
Mechanism
|
|
PH128800T007-ZHR01 |
1280 *3(RGB) x 800 dots |
254.96(W) * 173.6(L) * 10.8(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
None |
0.1695 (W) * 0.1695 (L) |
FT5726 |
LVDS |
85/85/85/85 |
Full |
600 |
CTP |
Mechanism
|
|
PH128800T007-ZFC01 |
1280 *3(RGB) x 800 dots |
254.96(W) * 173.6(L) * 9.7(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
None |
0.1695 (W) * 0.1695 (L) |
FT5726 |
4-Lane MIPI |
80/80/80/80 |
Full |
500 |
CTP |
Mechanism
|
|
PH128800T002-ZBC01 |
1280(RGB) x 800 dots |
254.96(W) * 173.6(L) * 7.4(H) |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
LVDS |
85/85/85/85 |
Full |
500 |
CTP-GG |
Mechanism
|
|
PH102600T020-IFC01 |
1024(RGB) x 600 dots |
260.92(W) * 163.48(L) * 7.15(H) |
223.72 (W) * 126.28 (L) |
222.72(W) * 125.28(L) |
None |
None |
None |
LVDS 8 bit |
60/60/60/60 |
6H |
400 |
CTP-GG |
Mechanism
|
|
PH128800T004-ZZC06 |
1280(RGB) x 800 dots |
254.96(W) * 173.6(L) * 10.0 (H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
LVDS |
85/85/85/85 |
Full |
800 |
CTP-GG |
Mechanism
|
|
PH128800T007-ZHR03 |
1280 *3(RGB) x 800 dots |
254.96(W) * 173.6(L) * 12.8(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
None |
0.1695 (W) * 0.1695 (L) |
FT5726 |
LVDS |
85/85/85/85 |
Full |
800 |
CTP |
Mechanism
|
|
PH128800T004-ZFA01 |
1280(RGB) x 800 dots |
229.8(W) * 149.0(L) * 23.6(H) |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
HDMI |
85/85/85/85 |
IPS |
500 |
None |
Mechanism
|
|
PH128800T004-ZFC |
1280(RGB) x 800 dots |
254.96(W) * 173.6(L) * 26.2(H) |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
HDMI |
85/85/85/85 |
IPS |
450 |
CTP-GG |
Mechanism
|
|
PH128800T007-ZHC02 |
1280 *3(RGB) x 800 dots |
254.96(W) * 173.6(L) * 10.8(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
None |
0.1695 (W) * 0.1695 (L) |
FT5726 |
MIPI |
80/80/80/80 |
Full |
800 |
CTP |
Mechanism
|
|
PH128800T007-ZHC04 |
1280 *3(RGB) x 800 dots |
254.96(W) * 173.6(L) * 26.2(H) |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
None |
0.1695 (W) * 0.1695 (L) |
ILI2132 |
HDMI |
80/80/80/80 |
Full |
800 |
CTP |
Mechanism
|
|
PH128800T007-ZHA02 |
1280(RGB) x 800 dots |
229.8(W) * 149.0(L) * 23.5(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
None |
0.1695 (W) * 0.1695 (L) |
None |
HDMI |
85/85/85/85 |
Full |
1000 |
None |
Mechanism
|
|
PH128800T006-ZFA |
1280(RGB) x 800 dots |
229.8(W) * 149.0(L) * 7.0(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
LVDS |
85/85/85/85 |
Full |
500 |
None |
Mechanism
|
|
PH102600T020-IFA |
1024(RGB) x 600 dots |
235.0(W) * 143.0(L) * 4.6(H) |
223.72 (W) * 126.28 (L) |
222.72(W) * 125.28(L) |
0.2175 (W) * 0.2088 (H) |
None |
None |
LVDS |
60/60/60/60 |
6H |
500 |
None |
Mechanism
|
|
PH128800T006-ZHA |
1280(RGB) x 800 dots |
229.8(W) * 149.0(L) * 8.0(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
LVDS |
85/85/85/85 |
Full |
1000 |
None |
Mechanism
|
|
PH128800T006-ZFC |
1280(RGB) x 800 dots |
254.96(W) * 173.6(L) * 9.7(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
FT5726 |
LVDS |
85/85/85/85 |
Full |
400 |
CTP-GG |
Mechanism
|
|
PH128800T006-ZHC01 |
1280(RGB) x 800 dots |
229.8(W) * 149.0(L) * 14.75(H) |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
ILI2132 |
LVDS |
85/85/85/85 |
Full |
800 |
CTP-GG |
Mechanism
|
|
PH102600T020-IEC |
1024(RGB) x 600 dots |
260.92(W) * 163.48(L) * 7.15(H) |
223.72 (W) * 126.28 (L) |
222.72(W) * 125.28(L) |
None |
None |
None |
Dual-Channel LVDS, 4-lane per Channel |
89/89/89/89 |
Full |
295 |
CTP-GG |
Mechanism
|
|
PH128800T006-ZHC02 |
1280(RGB) x 800 dots |
254.96(W) * 173.6(L) * 14.75(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
ILI2132 |
LVDS |
85/85/85/85 |
Full |
850 |
CTP-GG |
Mechanism
|
|
PH128800T007-ZHC |
1280(RGB) x 800 dots |
254.96(W) * 173.6(L) * 11.6(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
FT5726 |
LVDS |
80/80/80/80 |
Full |
800 |
CTP-GG |
Mechanism
|
|
PH128800T006-ZFC05 |
1280(RGB) x 800 dots |
254.96(W) * 173.6(L) * 26.2(H) |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
FT5726 |
HDMI |
85/85/85/85 |
IPS |
500 |
CTP-GG |
Mechanism
|
|
PH192120T001-ZHA |
1920(RGB) x 1200 dots |
149.0(W) * 228.0(L) * 8.6(H) |
217.576 (W) * 136.36 (L) |
216.576(W) * 135.36(L) |
0.1128 (W) * 0.1128 (L) |
None |
None |
eDP |
85/85/85/85 |
Full |
1000 |
None |
Mechanism
|
|
PH192120T001-ZHC |
1920(RGB) x 1200 dots |
254.96(W) * 173.6(L) * 16.3(H) |
217.96 (W) * 136.6 (L) |
216.576(W) * 135.36(L) |
0.1128 (W) * 0.1128 (L) |
None |
None |
eDP |
85/85/85/85 |
Full |
850 |
None |
Mechanism
|
|
PH128800T004-ZZA01 |
1280(RGB) x 800 dots |
229.8(W) * 149.0(L) * 10.0(H)Max |
217.96 (W) * 136.6 (L) |
216.96(W) * 135.6(L) |
0.1695 (W) * 0.1695 (L) |
None |
None |
LVDS |
85/85/85/85 |
Full |
1000 |
None |
Mechanism
|
|
PH128800T008-ZHA |
1280(RGB) x 800 dots |
283.0(W) * 185.1(L) * 7.2(H) |
264.72 (W) * 166.8 (L) |
261.12(W) * 163.2(L) |
None |
None |
None |
8 bit LVDS |
85/85/85/85 |
Full |
1000 |
None |
Mechanism
|
|
PH192120T001-ZHC |
1920 *3(RGB) x 1200 dots |
254.96(W) * 173.6(L) * 16.3(H) |
217.96 (W) * 136.6 (L) |
216.576(W) * 135.36(L) |
None |
0.1128 (W) * 0.1128 (L) |
FT5726 |
eDP1.4 |
85/85/85/85 |
Full |
850 |
CTP |
|
|
PH128800T008-ZHR |
1280(RGB) x 800 dots |
305.0(W) * 200.0(L) * 11.4(H) |
262.12 (W) * 164.2 (L) |
261.12(W) * 163.2(L) |
None |
0.204 (W) * 0.204 (L) |
ILI2132 |
8 bit LVDS |
85/85/85/85 |
Full |
850 |
CTP |
Mechanism
|
|
PH192108T005-ZHC01 |
1920*3(RGB) x 1080 dots |
234.59(W) * 385.16(L) * 17.2(H) |
194.59 (W) * 345.16 (L) |
193.59(W) * 344.16(L) |
None |
0.17925 (W) * 0.17925 (L) |
ILI2521 |
LVDS |
85/85/85/85 |
Full |
500 |
CTP |
Mechanism
|
|
PH192108T005-ZHC |
1920*3(RGB) x 1080 dots |
234.59(W) * 385.16(L) * 17(H) |
194.59 (W) * 345.16 (L) |
193.59(W) * 344.16(L) |
None |
0.17925 (W) * 0.17925 (L) |
ILI2521 |
LVDS |
85/85/85/85 |
Full |
1000 |
CTP |
Mechanism
|
|
PH192108T005-ZFC |
1920(RGB) x 1080 dots |
385.16(W) * 234.59(L) * 18.0(H)Max |
345.16 (W) * 194.59 (L) |
344.16(W) * 193.59(L) |
None |
None |
None |
Dual-Channel LVDS, 4-lane per Channel |
89/89/89/89 |
Full |
380 |
CTP-GG |
Mechanism
|
|
PH192108T004-ZAC |
1920(RGB) x 1080 dots |
570.0(W) * 334.3(L) * 20(H)Max |
528.0 (W) * 297.5 (L) |
527.04(W) * 296.46(L) |
None |
None |
None |
Dual-Channel LVDS, 4-lane per Channel |
89/89/89/89 |
Full |
250 |
CTP-GG |
Mechanism
|
|
NPC0802LRS-AWA-H |
8 ch x 2 lines |
32.0(W) * 58.0(L) * 13.5(H) |
16.0 (W) * 38.0 (L) |
11.5(W) * 27.81(L) |
0.70 (W) * 0.60 (L) |
0.66 (W) * 0.56 (L) |
ST7066U |
None |
40/40/40/40 |
6H |
40 |
None |
Mechanism
|
|
NPC1602WRS-FWA-H |
16 ch x 2 lines |
44.0(W) * 84.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U-0A |
6800-series 8-bit parallel |
40/40/45/45 |
6H |
270 |
None |
Mechanism
|
|
NPC1602WRP-FWA-I |
16 ch x 2 lines |
84.0 * 44.0 |
66.0 * 16.0 |
56.2 * 11.5 |
0.6 * 0.7 |
0.55 * 0.65 |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRS-FWA-H |
16 ch x 2 lines |
44.0(W) * 84.0(L) * 13.2(H)Max |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRU-FWA-H |
16 ch x 2 lines |
44.0(W) * 84.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRS-FWB-H |
16 ch x 2 lines |
44.0(W) * 84.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRU-FWB-H |
16 ch x 2 lines |
44.0(W) * 84.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602WRS-GWA-H |
16 ch x 2 lines |
36.0(W) * 80.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U |
6800-series 8-bit parallel |
40/40/45/45 |
6H |
270 |
None |
Mechanism
|
|
NPC1602LRS-GWA-H |
16 ch x 2 lines |
36.0(W) * 80.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRU-GWA-H |
16 ch x 2 lines |
36.0(W) * 80.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRS-GWB-H |
16 ch x 2 lines |
36.0(W) * 80.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRU-GWB-H |
16 ch x 2 lines |
36.0(W) * 80.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602WRP-GWA-I |
16 ch x 2 lines |
80.0 * 36.0 |
66.0 * 16.0 |
56.2 * 11.5 |
0.6 * 0.7 |
0.55 * 0.65 |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602WRS-JWA-H |
16 ch x 2 lines |
30.0(W) * 85.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U |
6800-series 8-bit parallel |
40/40/45/45 |
6H |
270 |
None |
Mechanism
|
|
NPC1602LRS-JWA-H |
16 ch x 2 lines |
30.0(W) * 85.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRU-JWA-H |
16 ch x 2 lines |
30.0(W) * 85.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRS-JWB-H |
16 ch x 2 lines |
30.0(W) * 85.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602LRU-JWB-H |
16 ch x 2 lines |
30.0(W) * 85.0(L) * 12.7(H) |
16.0 (W) * 66.0 (L) |
11.5(W) * 56.2(L) |
5.95 (W) * 3.55 (L) |
5.55 (W) * 2.95 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC1602WRP-JWA-I |
16 ch x 2 lines |
85.0 * 30.0 |
66.0 * 16.0 |
56.2 * 11.5 |
0.6 * 0.7 |
0.55 * 0.65 |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
NPC2004LRS-AWA-H |
20 ch x 4 lines |
60.0(W) * 98.0(L) * 12.8(H) |
25.2 (W) * 76.0 (L) |
20.8(W) * 70.4(L) |
0.60 (W) * 0.60 (L) |
0.55 (W) * 0.55 (L) |
ST7066U/ST7063C |
- |
50/50/40/40 |
6H |
53 |
None |
Mechanism
|
|
NPC2004LRU-AWA-H |
20 ch x 4 lines |
60.0(W) * 98.0(L) * 12.8(H) |
25.2 (W) * 76.0 (L) |
20.8(W) * 70.4(L) |
0.60 (W) * 0.60 (L) |
0.55 (W) * 0.55 (L) |
ST7066U/ST7063C |
- |
50/50/50/50 |
6H |
54 |
None |
Mechanism
|
|
NPC2004LRS-BWA-H |
20 ch x 4 lines |
43.0(W) * 118.0(L) * 12.8(H) |
25.2 (W) * 76.0 (L) |
20.8(W) * 70.4(L) |
3.55 (W) * 5.35 (L) |
2.95 (W) * 4.75 (L) |
ST7066U/ST7063C |
4 Bit or 8 Bit interface |
50/50/40/40 |
6H |
40 |
None |
Mechanism
|
|
NPC2004LRU-BWA-H |
20 ch x 4 lines |
43.0(W) * 118.0(L) * 13.8(H)Max |
25.2 (W) * 76.0 (L) |
20.8(W) * 70.4(L) |
0.60 (W) * 0.60 (L) |
0.55 (W) * 0.55 (L) |
ST7066U |
- |
50/50/50/50 |
6H |
50 |
None |
Mechanism
|
|
PC1602LRS-LWA-B-Q |
16 ch x 2 lines |
44.0(W) * 122.0(L) * 13.5(H) |
24.0 (W) * 99.0 (L) |
20.0(W) * 94.84(L) |
1.16 (W) * 0.98 (L) |
1.10 (W) * 0.92 (L) |
ST7066U, ST7065C |
4/8-bit Parallel data input |
50/50/45/45 |
6H |
18 |
None |
Mechanism
|
|
PC1604LRU-AWA-B-Q |
16 ch x 4 lines |
60.0(W) * 87.0(L) * 14.0(H)Max |
25.6 (W) * 62.0 (L) |
20.8(W) * 56.2(L) |
0.6 (W) * 0.6 (L) |
0.55 (W) * 0.55 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PC2004LRS-CWA-B-Q |
20 ch x 4 lines |
47.0(W) * 77.0(L) * 14.2(H) |
22.0 (W) * 66.0 (L) |
17.56(W) * 55.12(L) |
0.51 (W) * 0.47 (L) |
0.46 (W) * 0.42 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PC4002LRS-BWA-B-Q |
40 ch x 2 lines |
33.5(W) * 182.0(L) * 14.5(H)Max |
15.3 (W) * 154.0 (L) |
11.5(W) * 147.5(L) |
0.70 (W) * 0.65 (L) |
0.65 (W) * 0.60 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PC4002LRU-BWA-B-Q |
40 ch x 2 lines |
33.5(W) * 182.0(L) * 14.5(H)Max |
15.3 (W) * 154.0 (L) |
11.5(W) * 147.5(L) |
0.70 (W) * 0.65 (L) |
0.65 (W) * 0.60 (L) |
ST7066U or compatible |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PE128128WRF003H02Q |
128 x 128 dots |
60.0(W) * 62.0(L) * 12.2(H) |
50.0 (W) * 50.0 (L) |
46.05(W) * 46.05(L) |
0.36 (W) * 0.36 (L) |
0.33 (W) * 0.33 (L) |
ST7541-G |
8-bit parallel bi-directional interface with 8080 or 6800-series |
40/40/45/45 |
6H |
65 |
None |
Mechanism
|
|
PE12864WRF-042H13Q |
128 x 64 dots |
53.0(W) * 76.1(L) * 5.0(H) |
38.8 (W) * 70.7 (L) |
33.265(W) * 66.545(L) |
0.52 (W) * 0.52 (L) |
0.505 (W) * 0.505 (L) |
ST7567-G4 |
Parallel 6800 or 8080 Series MPU Interface and Serial 4-Line SPI Interface |
40/40/45/45 |
6H |
45 |
None |
Mechanism
|
|
PE12864WRF-042HC1Q |
128 x 64 dots |
54.0(W) * 80.0(L) * 9.7(H) |
38.8 (W) * 70.7 (L) |
33.265(W) * 66.545(L) |
0.52 (W) * 0.52 (L) |
0.505 (W) * 0.505 (L) |
ST7567 |
68/80-8bit/SPI-4 |
None |
6H |
None |
None |
Mechanism
|
|
PE12864LRF-042H01Q |
128 x 64 dots |
54.0(W) * 80.0(L) * 9.7(H) |
38.8 (W) * 70.7 (L) |
33.265(W) * 66.545(L) |
0.52 (W) * 0.52 (L) |
0.505 (W) * 0.505 (L) |
ST7567 |
68/80-8bit/SPI-4 |
None |
6H |
None |
None |
Mechanism
|
|
PE12864WRF-042-H-Q |
128 x 64 dots |
54.0(W)(except FPC length) * 80.0(L) * 9.7(H) |
70.7 (W) * 38.8 (L) |
66.545(W) * 33.265(L) |
0.52 (W) * 0.52 (L) |
0.505 (W) * 0.505 (L) |
ST7567-G4 |
4-line serial interface |
40/40/45/45 |
6H |
180 |
None |
Mechanism
|
|
PE12864LRF-042-H-Q |
128 x 64 dots |
54.0(W)(except FPC length) * 80.0(L) * 9.7(H) |
70.7 (W) * 38.8 (L) |
66.545(W) * 33.265(L) |
0.52 (W) * 0.52 (L) |
0.505 (W) * 0.505 (L) |
ST7567 |
SPI-4 |
None |
6H |
None |
None |
Mechanism
|
|
PE12864LRF-055HC1Q |
128 x 64 dots |
39.8(W) * 55.2(L) * 6.0(H) |
27.0 (W) * 45.2 (L) |
24.31(W) * 40.95(L) |
0.38 (W) * 0.32 (L) |
0.34 (W) * 0.28 (L) |
ST7567-G4 |
Parallel 8080 MPU interface |
40/40/40/40 |
6H |
5 |
None |
Mechanism
|
|
PE12864WRF-055H15Q |
128 x 64 dots |
39.8(W) * 55.2(L) * 5.0(H) |
45.2 (W) * 27.0 (L) |
40.95(W) * 24.31(L) |
0.32 (W) * 0.38 (L) |
0.31 (W) * 0.37 (L) |
ST7567-G4 |
"Support 8 bits Parallel interface for 8080 or 6800 series MPU & Serial (4-Line SPI) interface" |
40/40/40/40 |
6H |
160 |
None |
Mechanism
|
|
PE12864WRF-055-H-Q |
128 x 64 dots |
55.2(W) * 39.8(L) * 5.0(H) |
45.2 (W) * 27.0 (L) |
40.95(W) * 24.31(L) |
0.32 (W) * 0.38 (L) |
0.31 (W) * 0.37 (L) |
ST7567 |
68/80-8bit/SPI-4 |
55/60/60/60 |
6H |
200 |
None |
Mechanism
|
|
PE12864WRF-100-H-Q |
128 x 64 dots |
49.2(W) * 86.35(L) * 5.85(H) |
35.75 (W) * 72.86 (L) |
34.54(W) * 71.66(L) |
0.54 (W) * 0.56 (L) |
0.52 (W) * 0.54 (L) |
ST7567-G4B |
Serial data input |
45/45/45/45 |
6H |
32 |
None |
Mechanism
|
|
PE12864WRM-100-L-Q |
128 x 64 dots |
49.2(W) * 86.35(L) * 5.85(H) |
36.6 (W) * 74.0 (L) |
34.54(W) * 71.66(L) |
0.54 (W) * 0.56 (L) |
0.52 (W) * 0.54 (L) |
ST7567-G4B |
Serial data input |
35/30/45/50 |
12H |
80 |
None |
Mechanism
|
|
PE240128WRF001HC1Q |
240 x 128 dots |
64.2(W) * 99.2(L) * 5.4(H) |
49.0 (W) * 93.0 (L) |
44.135(W) * 82.775(L) |
0.345 (W) * 0.345 (L) |
0.32 (W) * 0.32 (L) |
ST7529 |
68/80-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PE240128WRF-002-KQ |
240 x 128 dots |
54.5(W) * 74.5(L) * 9.8(H)Max |
40.0 (W) * 68.0 (L) |
36.46(W) * 61.18(L) |
0.255 (W) * 0.285 (L) |
0.235 (W) * 0.265 (L) |
ST7529 |
68/80-8bit |
None |
12H |
None |
None |
Mechanism
|
|
PE240160WRT001I09Q |
240 x 160 dots |
96.2(W) * 67.2(L) * 5.0(H) |
80.78 (W) * 54.18 (L) |
76.785(W) * 51.185(L) |
0.32 (W) * 0.32 (L) |
0.305 (W) * 0.305 (L) |
ST7529-G |
8-bit parallel bi-directional interface with 6800-series or 8080-series |
25/40/45/45 |
6H |
360 |
None |
Mechanism
|
|
PE240160WRF-001-HQ |
240 x 160 dots |
67.2(W) * 96.2(L) * 11.6(H)Max |
54.18 (W) * 80.78 (L) |
56.185(W) * 76.785(L) |
0.32 (W) * 0.32 (L) |
0.305 (W) * 0.305 (L) |
ST7529-G |
Support 8 Bit Parallel interface with 8080 or 6800 series MPU |
None |
6H |
70 |
None |
Mechanism
|
|
PE24064WRF-004-H-Q |
240 x 64 dots |
44.82(W) * 120.0(L) * 5.5(H) |
30.22 (W) * 102.4 (L) |
26.23(W) * 98.39(L) |
0.41 (W) * 0.41 (L) |
0.40 (W) * 0.40 (L) |
ST7586S |
4-Line serial interface |
50/50/50/50 |
6H |
45 |
None |
Mechanism
|
|
PE320240WRF008H11Q |
320 x 240 dots |
110.0(W) * 167.0(L) * 7.5(H) |
90.0 (W) * 120.2 (L) |
86.385(W) * 115.185(L) |
0.36 (W) * 0.36 (L) |
0.345 (W) * 0.345 (L) |
NT7711H-D, NT7712H-D |
4 bits parallel data input |
35/35/40/35 |
6H |
140 |
None |
Mechanism
|
|
PE320240WRF021H02Q |
320 x 240 dots |
96.8(W) * 143.0(L) * 12.6(H)Max |
81.0 (W) * 106.0 (L) |
71.98(W) * 95.99(L) |
0.30 (W) * 0.30 (L) |
0.285 (W) * 0.285 (L) |
UCi7701c / UCi7702c |
4 bits parallel data input |
45/45/45/45 |
6H |
70 |
None |
Mechanism
|
|
PG12032LRS-DGB-H-Q |
120 x 32 dots |
32.9(W) * 68.1(L) * 7.6(H) |
22.5 (W) * 62.0 (L) |
20.75(W) * 56.35(L) |
0.65 (W) * 0.47 (L) |
0.60 (W) * 0.42 (L) |
SBN1661G |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PG12232LRF-BGBH02Q |
122 x 32 dots |
36.0(W) * 80.0(L) * 13.5(H)Max |
18.5 (W) * 60.5 (L) |
15.64(W) * 53.64(L) |
0.49 (W) * 0.44 (L) |
0.45 (W) * 0.40 (L) |
SBN1661G |
8 bit interface |
50/50/45/45 |
6H |
30 |
None |
Mechanism
|
|
PG12864WRF-JCNHP5Q |
128 x 64 dots |
52.7(W) * 75.0(L) * 8.4(H) |
32.6 (W) * 60.0 (L) |
27.48(W) * 55.0(L) |
0.43 (W) * 0.43 (L) |
0.39 (W) * 0.39 (L) |
NT7107,NT7108 |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PG12864LRU-JCN-H-Q |
128 x 64 dots |
52.7(W) *.75.0(L) * 8.4(H) |
32.6 (W) * 60.0 (L) |
27.48(W) * 55.0(L) |
0.43 (W) * 0.43 (L) |
0.39 (W) * 0.39 (L) |
NT7107,NT7108 |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PG12864LRF-KCN-H-Q |
128 x 64 dots |
70.0(W) * 93.0(L) * 14.0(H)Max |
40.0 (W) * 72.0 (L) |
33.24(W) * 66.52(L) |
0.52 (W) * 0.52 (L) |
0.48 (W) * 0.48 (L) |
NT7107,NT7108 |
- |
50/50/50/50 |
6H |
40 |
None |
Mechanism
|
|
PG12864WRF-KCNH05Q |
128 x 64 dots |
70.0(W) * 93.0(L) * 14.0(H)Max |
40.0 (W) * 72.0 (L) |
33.24(W) * 66.52(L) |
0.52 (W) * 0.52 (L) |
0.48 (W) * 0.48 (L) |
NT7107,NT7108 |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PG12864LRS-KCN-H-Q |
128 x 64 dots |
70.0(W) * 93.0(L) * 14.0(H)Max |
40.0 (W) * 72.0 (L) |
33.24(W) * 66.52(L) |
0.52 (W) * 0.52 (L) |
0.48 (W) * 0.48 (L) |
NT7107,NT7108 |
6800-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PG240128WRFAGAHPCQ |
240 x 128 dots |
104.0(W) * 144.0(L) * 16.0(H)Max |
64.0 (W) * 114.0 (L) |
57.55(W) * 107.95(L) |
0.45 (W) * 0.45 (L) |
0.40 (W) * 0.40 (L) |
SAP1024B |
80-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PG24064LRF-EGAH47Q |
240 x 64 dots |
180.0(W) * 65.0(L) * 13.1(H)Max |
132.6 (W) * 39.0 (L) |
127.16(W) * 33.88(L) |
0.53 (W) * 0.53 (L) |
0.49 (W) * 0.49 (L) |
SAP1024B |
- |
50/50/50/50 |
6H |
5 |
None |
Mechanism
|
|
PG24064WRF-EGAH43Q |
240 x 64 dots |
65.0(W) * 180.0(L) * 15.5(H)Max |
39.0 (W) * 132.6 (L) |
33.88(W) * 127.16(L) |
0.53 (W) * 0.53 (L) |
0.49 (W) * 0.49 (L) |
SAP1024B |
8080-series 8-bits parallel data bus |
40/40/45/45 |
6H |
120 |
None |
Mechanism
|
|
PG320240WRFDBAH31Q |
320 x 240 dots |
120.24(W) * 148.02(L) * 21.0(H)Max |
92.14 (W) * 120.14 (L) |
86.38(W) * 115.18(L) |
0.36 (W) * 0.36 (L) |
0.34 (W) * 0.34 (L) |
RA8835P3N |
80-8bit |
None |
6H |
None |
None |
Mechanism
|
|
PG320240LRFDNNH34Q |
320 x 240 dots |
120.24(W) * 148.02(L) * 21.0(H)Max |
92.14 (W) * 120.14 (L) |
86.38(W) * 115.18(L) |
0.36 (W) * 0.36 (L) |
0.34 (W) * 0.34 (L) |
NT7086 |
4 bits parallel data input |
40/40/45/45 |
6H |
None |
None |
Mechanism
|
|
PG320240LRFDDCH57Q |
320 x 240 dots |
120.24(W) * 148.02(L) * 22.0(H)Max |
92.14 (W) * 120.14 (L) |
86.38(W) * 115.17(L) |
0.36 (W) * 0.36 (L) |
0.34 (W) * 0.34 (L) |
UCi8835 |
8 Bit Parallel Data Input |
45/45/45/45 |
6H |
3 |
None |
Mechanism
|
|
PG320240WRFDE9HPAQ |
320 x 240 dots |
120.24(W) * 153.54(L) * 21.0(H)Max |
92.14 (W) * 120.14 (L) |
86.38(W) * 115.18(L) |
0.36 (W) * 0.36 (L) |
0.34 (W) * 0.34 (L) |
S1D13700 |
8080 series and 8 bit parallel data input |
40/40/40/40 |
6H |
35 |
None |
Mechanism
|
|
PG320240WRFHNNH35Q |
320 x 240 dots |
94.7(W) * 83.3(L) * 9.5(H)Max |
78.78 (W) * 59.58 (L) |
76.78(W) * 57.58(L) |
0.24 (W) * 0.24 (L) |
0.22 (W) * 0.22 (L) |
UCi7701cFAC-U0 / UCi7702cFAA-U0 |
4 bit parallel data input |
45/40/45/45 |
6H |
200 |
None |
Mechanism
|
|
PG320240WRFQNNH10Q |
320 x 240 dots |
109.0(W) * 166.0(L) * 12.5(H)Max |
90.0 (W) * 120.14 (L) |
86.385(W) * 115.185(L) |
0.36 (W) * 0.36 (L) |
0.345 (W) * 0.345 (L) |
SDN8080G-LQFPG |
4 bits parallel data input |
35/40/40/40 |
6H |
45 |
None |
Mechanism
|
