The design of Powertip Mini Board is very flexible to developers and users. Including customizable I/O ports such as CAN bus, Ethernet port or SD card slot. Users can download GUI development software “TouchGFX” from STMicroelectronics website if needed. The abundant graphic design combined with Powertip TFT display brings intuitive application under different scenarios.
.
 |  |
|
|

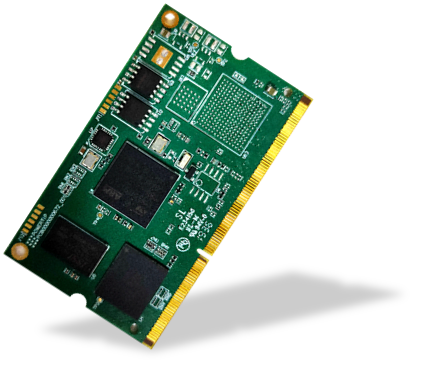

SoM |

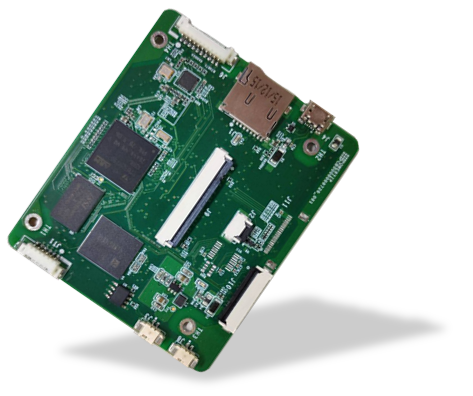

MINI |
|
P05D00071-02 |
P05D00071-01 |
|
|
MCU |
STM32H750 |
STM32H750 |
|
ARCH. |
480 MHz, ARM Cortex-M7 |
480 MHz, ARM Cortex-M7 |
|
RAM |
16MB SDRAM |
16MB SDRAM |
|
FLASH |
32MB QSPI |
32MB QSPI |
|
IO PORT |
SDIO, UART, I2C, Ethernet, SPI |
mSD, UART, I2C, Ethernet, SPI |
|
Display Resolution |
Up to 1024x768 |
Up to 1024x768 |
|
Display Interface |
Parallel TTL RGB |
Parallel TTL RGB |
|
Board TYPE |
SoM TYPE-2 |
MINI |
.

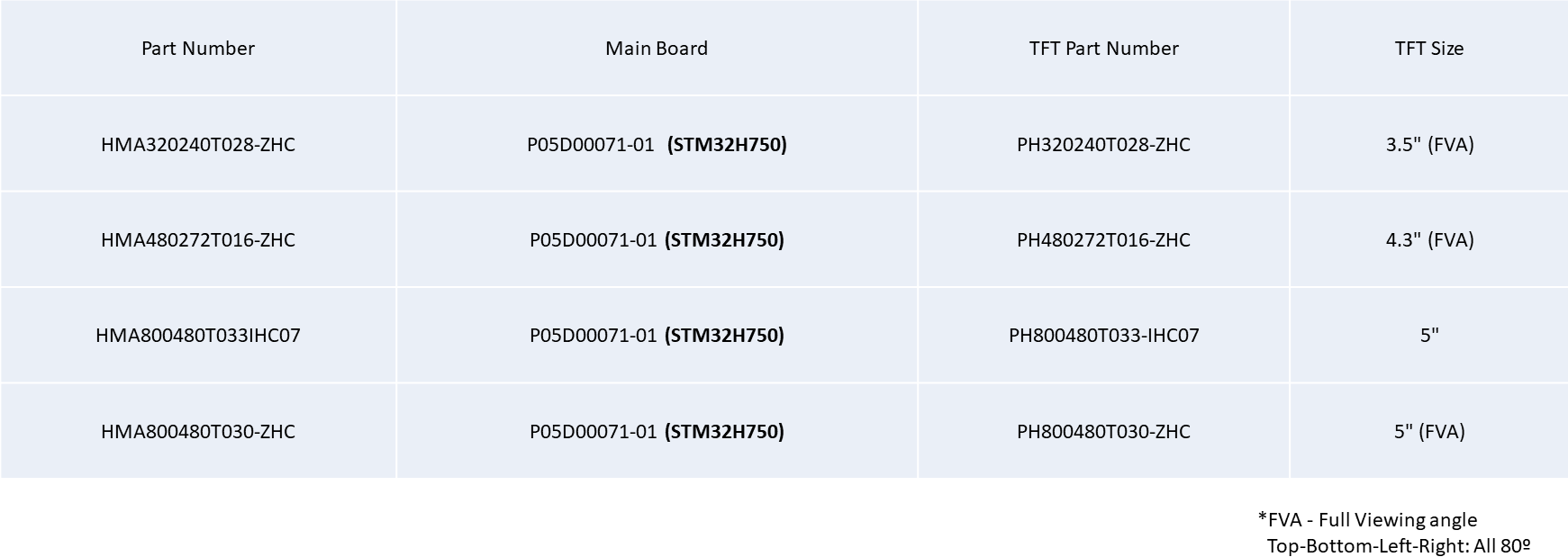

●HMA320240T028-ZHC：
●HMA480272T016-ZHC：
●HMA800480T030-ZHC：
●HMA800480T033IHC07：
●HMA102600T013ZHC05：
●Common File(All)：
*：Please sign in to see detail spec
| Size Inch | Powertip Part No. | Display Format | Outline Dimensions | Viewing Area | Active Area | Dot Pitch | Dot Size | Controller | Interface | Viewing Angle | Viewing Direction | Brightness | Touch Screen | CPU | I/O | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.5 | HMA320240T028-ZHC | 320(RGB) x 240 dots | 84.02(W) * 75.36(L) * 14(H)Max | 71.08 (W) * 53.56 (L) | 70.08(W) * 52.56(L) | 0.219 (W) * 0.219 (L) | None | None | None | 80/80/80/80 | Full | 800 | CTP-GG | STM32H750 480 MHz, ARM Cortex-M7 | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial | |
| 4.3 | HMA480272T016-ZHC | 480(RGB) x 272 dots | 113.2(W) * 73.2(L) * 13.5(H)Max | 96.1 (W) * 54.9 (L) | 95.04(W) * 53.856(L) | 0.198 (W) * 0.198 (L) | None | None | Parallel RGB 24 bits | 80/80/80/80 | Full | 800 | CTP-GG | STM32H750 480 MHz, ARM Cortex-M7 | USB,Serial,RMII | |
| 5 | HMA800480T033IHC07 | 800(RGB) x 480 dots | 131.0(W) * 90.5(L) * 14(H)Max | 109.0 (W) * 65.8 (L) | 108.0(W) * 64.8(L) | 0.135 (W) * 0.135 (L) | None | None | None | 60/60/60/60 | 6H | 850 | CTP-GG | STM32H750 480 MHz, ARM Cortex-M7 | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial | |
| 5 | HMA800480T030-ZHC | 800(RGB) x 480 dots | 131.0(W) * 90.5(L) * 14(H)Max | 109.0 (W) * 65.8 (L) | 108.0(W) * 64.8(L) | 0.135 (W) * 0.135 (L) | None | None | None | 80/80/80/80 | Full | 850 | CTP-GG | STM32H750 480 MHz, ARM Cortex-M7 | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial | |
| 7 | HMA102600T013ZHC05 | 1024 *3(RGB) x 600 dots | 186.8(W) * 110.56(L) * 20.0(H)Max | 217.96 (W) * 136.6 (L) | 154.21(W) * 85.92(L) | None | 0.1506 (W) * 0.1432 (L) | None | Parallel RGB 24 bits | 80/80/80/80 | Full | 1000 | CTP | STM32H750 480 MHz, ARM Cortex-M7 | USB,Serial,RMII |
