Our production integrated System on Module (SoM) and TFT-LCD display module to implement Human Machine Interfaces (HMI) applications. With several peripheral interface (I2C, UART, SPI, USB2.0, PWM, I2S, etc.), and hardware video decoding capability on our embedded system board to different interface display modules as RGB, LVDS and MIPI-DSI. Currently we support Linux and Android as operating system for customers’ requirement. Board Support Packages (BSP) are allowed to free download for our customer to build their own root file system. It will accelerate development on the embedded system conveniently for HMI solutions. Our customers could develop applications by using Qt library or variety of Python libraries for embedded system. Mostly, the comprehensive applications are used for HMI which included IoT, industrial control and vending machines, etc. SoM Carrier Board/Mini Board |
 |  |  |
|
|
P05D00064-02 |

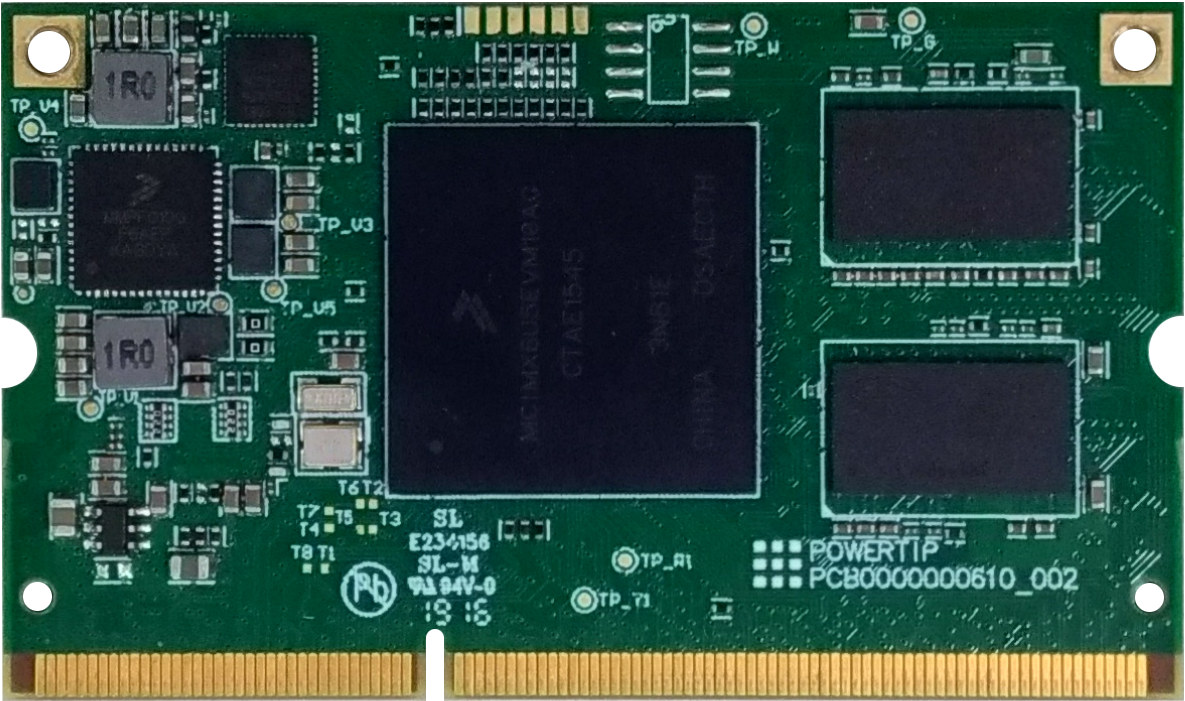

P05D00065-01 |
|
MPU |
RK3288 / RK3288K |
i.MX6DL |
|
ARCH. |
1.6GHz Quad Core 32 bit ARM Cortex-A17 |
1.0GHz Dual Core 32 bit ARM Cortex-A9 |
|
RAM |
2GB DDR3L |
2GB DDR3L |
|
FLASH(16,32,64GB optional) |
8GB eMMC |
8GB eMMC |
|
IO PORT |
UART, I2C, SPI, Ethernet, MIPI CSI, GPIO, SDIO, I2S |
UART, I2C, SPI, Ethernet, MIPI CSI, CAN, GPIO, SDIO, I2S, PCIe |
|
Display Resolution |
Up to 1920x1080 |
Up to 1920x1080 |
|
Display Interface |
HDMI, LVDS, MIPI DSI, eDP, |
HDMI, LVDS, MIPI DSI, Parallel TTL RGB |
|
OS |
Buildroot, Android, Debian, Ubuntu |
Yocto, Android |
 |  |  |
|
|
P05D00073-01 |
P05D00075-01 |
P05D00075-03 |
|
MPU |
PX30 |
i.MX8M Mini |
|
|
ARCH. |
1.6GHz Quad Core 64bit ARM Cortex-A35 |
1.6GHz Quad Core 64 bit ARM Cortex-A53 with Cortex-M4 |
|
|
RAM |
2GB DDR3L |
2GB LPDDR4 |
|
|
FLASH(16,32,64GB optional) |
8GB eMMC |
8GB eMMC |
|
|
IO PORT |
UART, I2C, SPI, Ethernet, MIPI CSI, GPIO, SDIO, I2S |
UART, I2C, SPI, Ethernet, MIPI CSI, GPIO, SDIO, I2S, PCIe |
|
|
Display Resolution |
Up to 1920x1080 |
Up to 1920x1080 |
|
|
Display Interface |
LVDS, MIPI DSI, Parallel TTL RGB |
LVDS, MIPI DSI |
Parallel TTL RGB, MIPI DSI |
|
OS |
Buildroot, Android |
Yocto, Android |
|
●P05D00064_Buildroot_Linux (For Buildroot,Debian,Ubuntu)： |
|
●P05D00064_Android_9  ： |
|
●P05D00065_Yocto_2.4_Rocko： |
|
●P05D00064_Linux(For Buildroot,Debian)： |
|
●P05D00073_Android_8 ： |
|
●P05D00075_Android_10 ： |
|
●P05D00075_Yocto_2.7_Warrior ： |
|
●P05D00075_Yocto_3.4_Honister： |
|
●P05D00075_Yocto_4.0_Kirkstone ： |
|

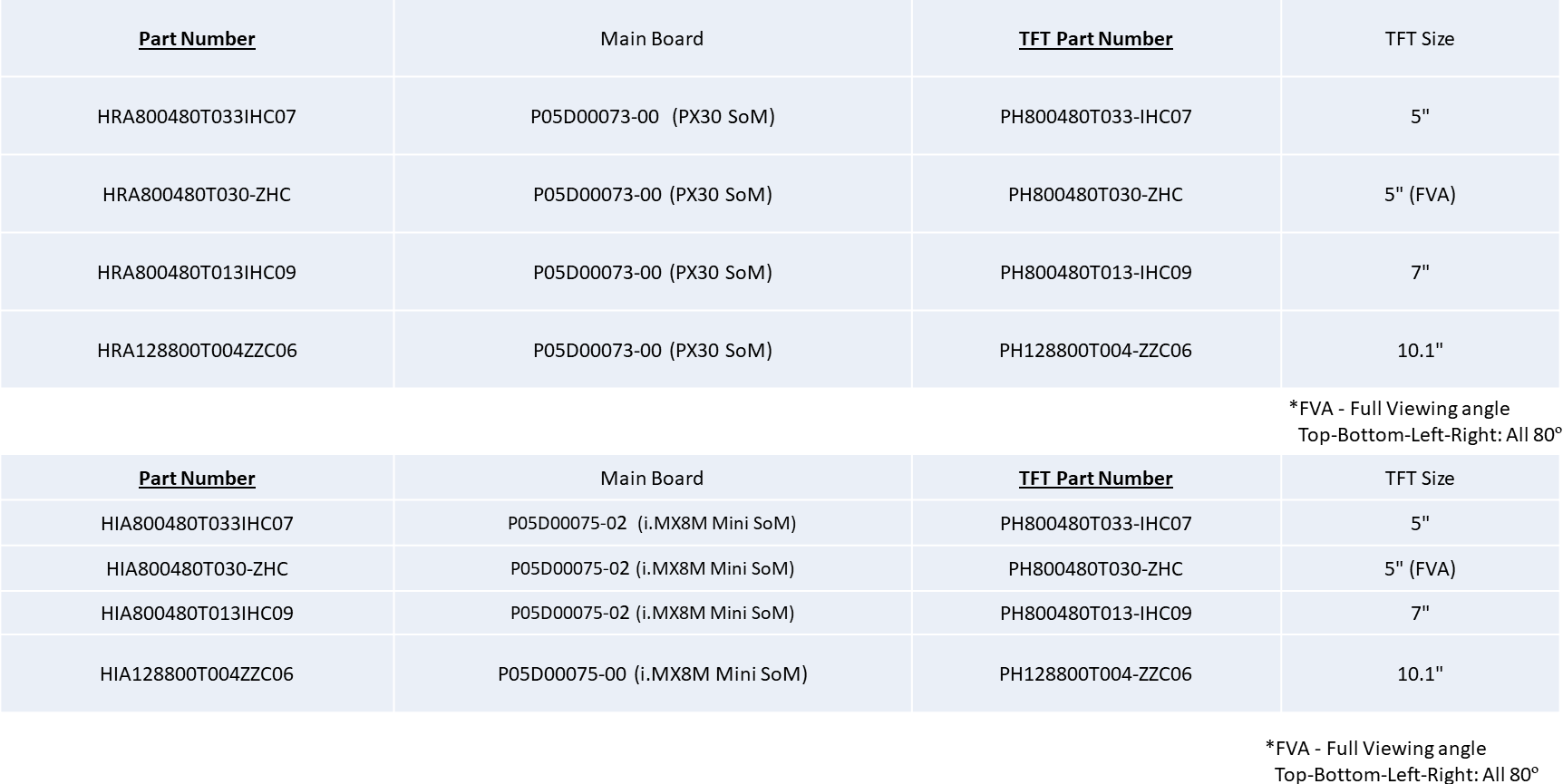

●HRA800480T033IHC07 ： |
|
|
|||
●HRA800480T030-ZHC ： |
|
|
|||
●HRA800480T013IHC09 ： |
|
|
|||
●HRA12880T004ZZC06 ： |
|
|
|||
●HIA800480T033IHC07 ： |
|
|
|
|
|
●HIA800480T030-ZHC ： |
|
|
|
|
|
●HIA800480T013IHC09 ： |
|
|
|
|
|
●HIA128800T004ZZC06 ： |
|
|
|
|
|
| Size Inch | Powertip Part No. | Display Format | Outline Dimensions | Viewing Area | Active Area | Dot Pitch | Dot Size | Controller | Interface | Viewing Angle | Viewing Direction | Brightness | Touch Screen | CPU | I/O | Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | HRA800480T030-ZHC | 800(RGB) x480 dots | 131.0(W) * 90.5 (L) *4.99(H) | 110.0 (W) * 66.5 (L) | 108.0(W) * 64.8(L) | 0.135 (W) * 0.135 (L) | * | * | * | 80/80/80/80 | IPS | 850 | CTP-GG | PX30 Quad-Core ARM Cortex-A35 | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial | 5 | HRA800480T033IHC07 | 800(RGB) x480 dots | 131.0(W) * 90.5 (L) * 4.99(H) | 110.0 (W) * 66.5 (L) | 108.0(W) * 64.8(L) | 0.135 (W) * 0.135 (L) | * | * | * | 60/60/60/60 | 6H | 850 | CTP-GG | PX30 Quad-Core ARM Cortex-A35 | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial |
| 5 | HIA800480T030-ZHC | 800(RGB) x 480 dots | 131.0(W) * 90.5 (L) * 4.99(H) | 110.0 (W) * 66.5 (L) | 108.0(W) * 64.8(L) | 0.135 (W) * 0.135 (L) | * | * | * | 80/80/80/80 | IPS | 850 | CTP-GG | i.MX8M Mini Quad Cortex-A53 @ 1.6 GHz | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial | 5 | HIA800480T033IHC07 | 800(RGB) x480 dots | 131.0(W) * 90.5 (L) * 4.99(H) | 110.0 (W) * 66.5 (L) | 108.0(W) * 64.8(L) | 0.135 (W) * 0.135 (L) | * | * | * | 60/60/60/60 | 6H | 800 | CTP-GG | i.MX8M Mini Quad Cortex-A53 @ 1.6 GHz | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial |
| 7 | HRA800480T013IHC09 | 800(RGB) x 480 dots | 186.8(W) * 110.56(L) * 5.29(H) | 154.88 (W) * 86.72 (L) | 154.08(W) * 85.92(L) | 0.1695 (W) * 0.1695 (L) | * | * | * | 50/70/70/70 | 6H | 850 | CTP-GG | PX30 Quad-Core ARM Cortex-A35 | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial | |
| 7 | HIA800480T013IHC09 | 800(RGB) x480 dots | 186.8(W) * 110.56(L) * 5.29(H) | 154.88 (W) * 86.72 (L) | 154.08(W) * 85.92(L) | 0.1695 (W) * 0.1695 (L) | * | * | * | 60/60/60/60 | 6H | 850 | CTP-GG | i.MX8M Mini Quad Cortex-A53 @ 1.6 GHz | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial | |
| 10.1 | HRA128800T004ZZC06 | 1280(RGB) x800 dots | 254.96(W) * 173.6(L) * 8.5(H) | 217.96 (W) * 136.60 (L) | 216.96(W) * 135.60(L) | 0.1695 (W) * 0.1695 (L) | * | * | * | 85/85/85/85 | IPS | 800 | CTP-GG | PX30 Quad-Core ARM Cortex-A35 | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial | |
| 10.1 | HIA128800T004ZZC06 | 1280(RGB) x800 dots | 254.96(W) * 173.6(L) * 8.5(H) | 217.96 (W) * 136.60 (L) | 216.96(W) * 135.60(L) | 0.1695 (W) * 0.1695 (L) | * | * | * | 85/85/85/85 | IPS | 800 | CTP-GG | i.MX8M Mini Quad Cortex-A53 @ 1.6 GHz | USB,Ethernet,Analog Audio,Wi-Fi,Bluetooth,Serial |
